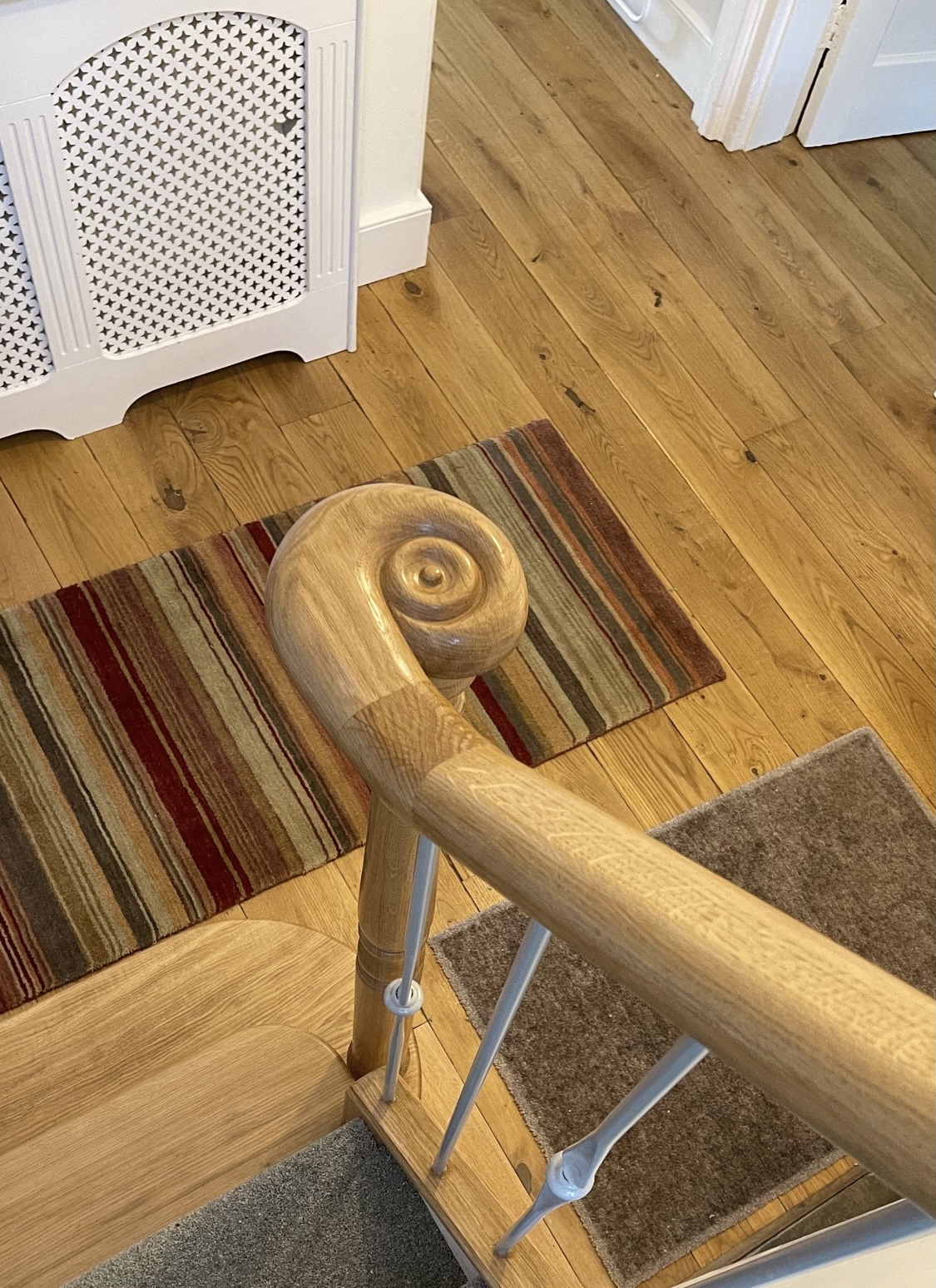

oak volute

An Oak volute featuring a decoratvie scoll design

HANDRAILS AND BASERAILS

We manufacture a wide range of handrails and baserails to suit all tastes and budgets. Rails are grooved to accept spindles of choice and the insert fillets are included, ready to be cut to fit between the spindles. All hand and base rails are supplied by the metre, only pay for what you need!

To compliment our hand rails we also produce a full range of continuous handrail components, all shown lower down on this page. All sectional bends are supplied with handrail bolts as required. In addition to continuous sections, our Victorian handrail can be supplied with traditional 'ramps and wreaths' to give the true Victorian sweeping handrail look.

Please see our Glossary for some help with handrail terms.

sapele/painted spindles

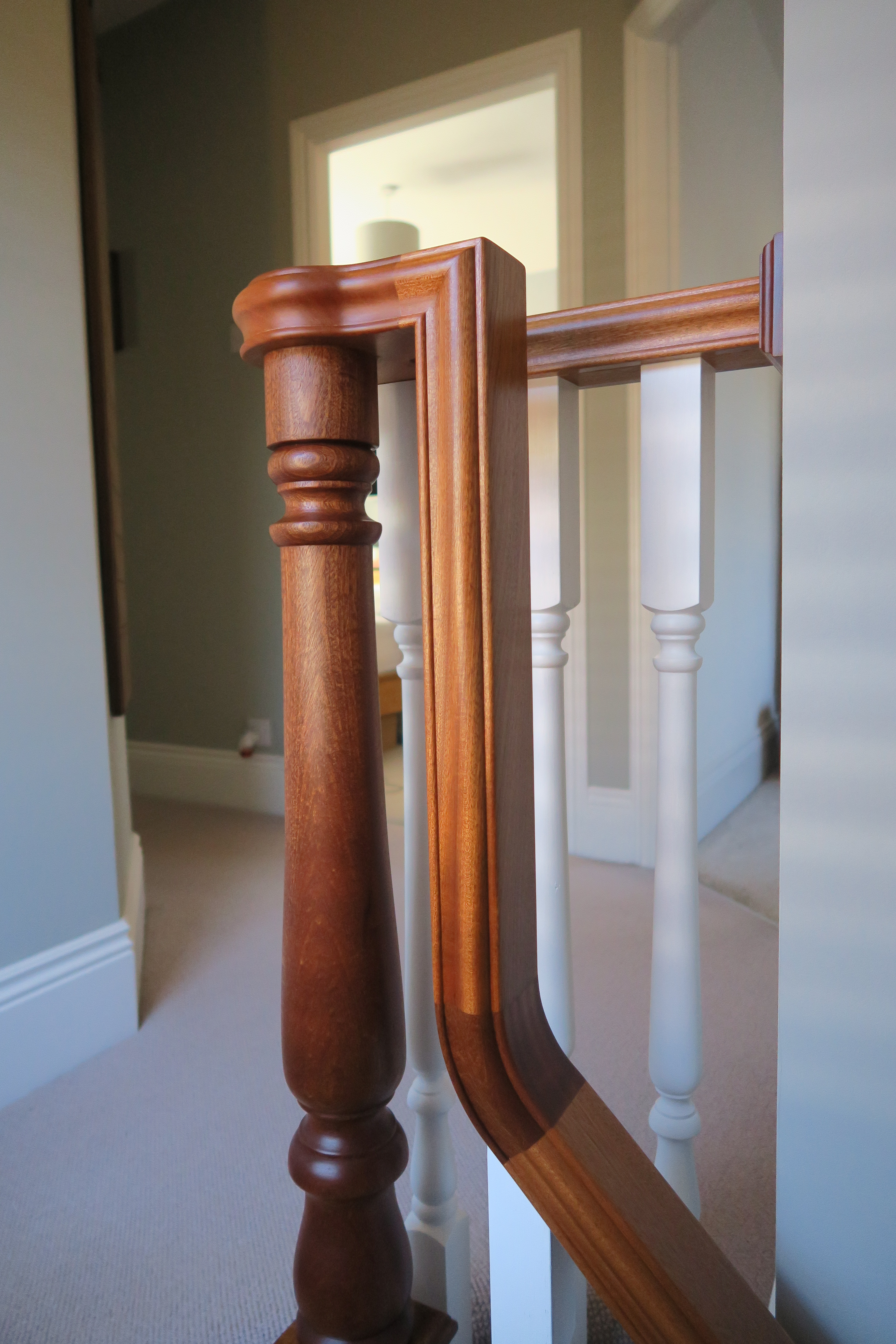

Vertical bend and horizontal bend cap in Sapele

THREE HANDRAIL SYSTEMS

Illustrated here are the three different methods of dealing with handrail turns.

sapele/painted spindles

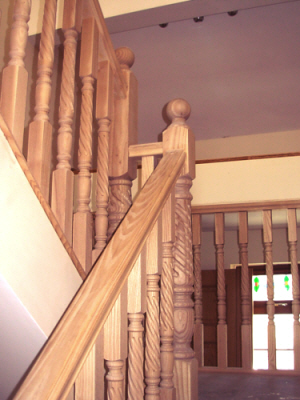

Method of returning through 180deg using straight lengths of handrail, between newel posts. Available in all our handrail profiles.
sapele/painted spindles

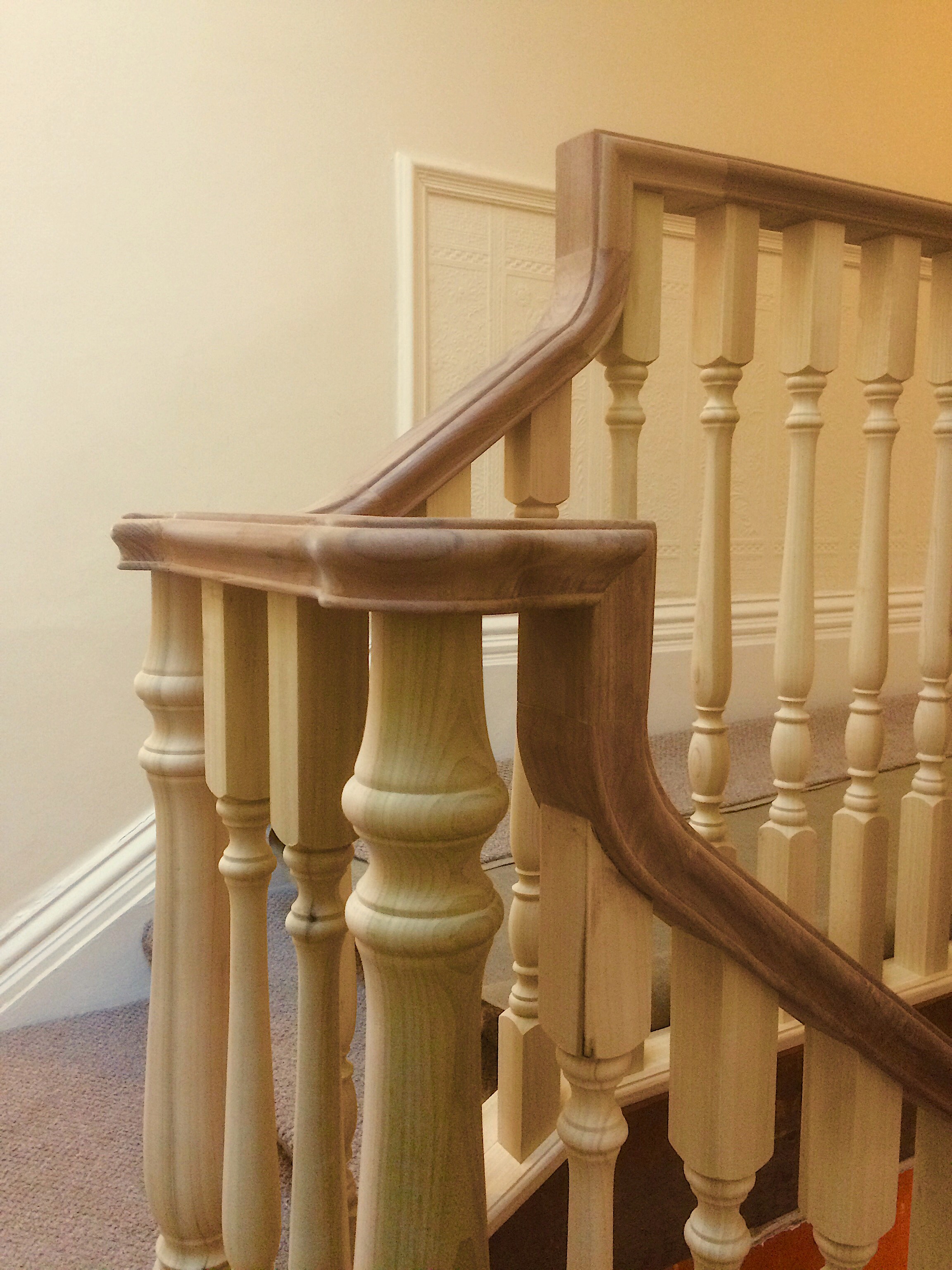

Method of returning through 180deg using 'continuous' handrail sections over pin top newels. Available in our Standard and Victorian profiles.
sapele/painted spindles

Method of returning through 180deg using fully 'ramped and wreathed' handrails with no newels. Available in our Victorian profile only.

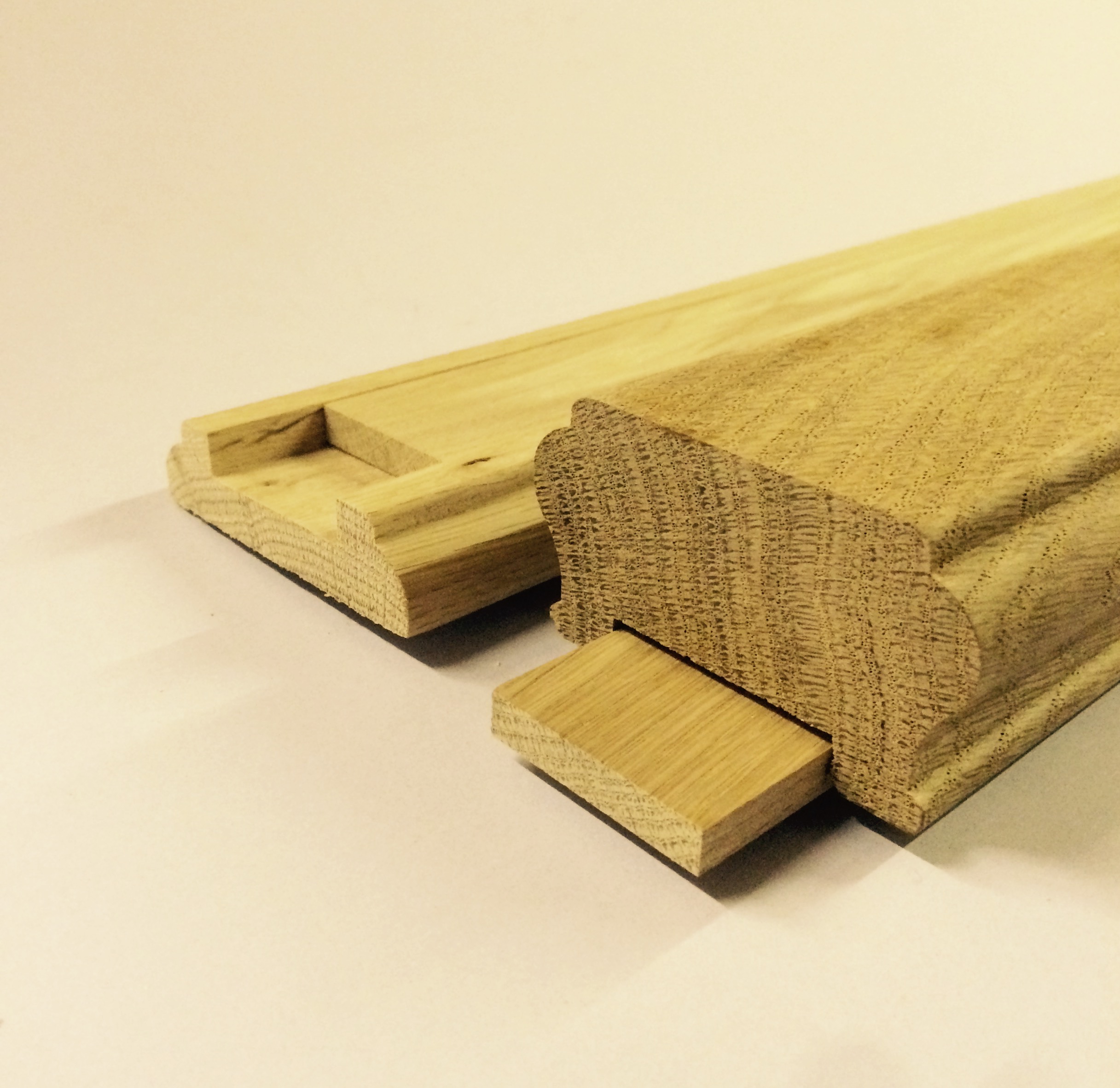

Standard Hand Rail

Our most popular handrail is available in a full range of timbers. As standard 80mm x 45mm it can be supplied up to 100mm wide and be grooved for 41mm to 70mm spindles. Matching baserail is 22mm deep.

Standard handrail is also available without a groove for wall mounting. See below for the full range of continuous components available for this handrail.


  Oak Tulipwood Ash Sapele Walnut
  Oak Pine Ash Sapele Walnut
HANDRAIL, 80x45mm £39.00/m £23.00/m £23.00/m £23.00/m £59.00/m
BASERAIL, 70x22mm £23.00/m £12.00/m £14.00/m £14.00/m £39.00/m

Victorian Style Rails

Our Victorian handrail is based on a very common profile used circa 1850-1910. At 80mm x 45mm high, grooved to accept spindles from 41mm to 55mm, Victorian handrail is also available without a groove for wall mounting.

In addition to a full range of continuous components we can also produce full ramps and wreaths for a genuine Victorian look to a staircase, see bottom of page.


  Oak Tulipwood Ash Sapele Walnut
  Oak Pine Ash Sapele Walnut
HANDRAIL, 80x45mm £39.00/m £23.00/m £23.00/m £23.00/m £59.00/m
BASERAIL, 70x22mm £22.00/m £12.00/m £14.00/m £14.00/m £39.00/m

Classic Style Rails

Our Classic handrail is another common Victorian profile which falls beautifully to the hand. At 80mm x 45mm high, grooved to accept spindles from 41mm to 55mm.


  Oak Tulipwood Ash Sapele Walnut
  Oak Pine Ash Sapele Walnut
HANDRAIL, 80x45mm £39.00/m £23.00/m £23.00/m £23.00/m £59.00/m
BASERAIL, 70x22mm £22.00/m £12.00/m £14.00/m £14.00/m £39.00/m

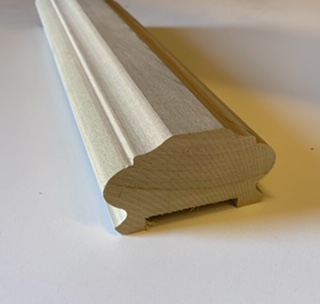

Heavy Section Rails

Our Heavy section handrail is based on our classic rail but includes a toadback moulding on the top.

At 95mm x 55mm high, grooved to accept spindles from 41mm to 70mm, our heavy rail is perfect for larger hallways.

Matching base rail is 90mm x 30mm high.


  Oak tulipwood Ash Sapele Walnut
  Oak Pine Ash Sapele Walnut
HANDRAIL, 95x55mm £60.00/m £32.00/m £32.00/m £32.00/m £90.00/m
BASERAIL 70x22mm £22.00/m £12.00/m £14.00/m £14.00/m £39.00/m

CONTINUOUS HANDRAIL SECTIONS

To compliment our Standard and Victorian handrails we manufacture a full range of continuous hand rail sections.

The images below show all the common continuous components in Oak to our 'standard' profile, all are also available in 'Victorian' profile.

All our continuous components are supplied complete with fixing bolts as required.

For help and guidance on continuous components see our glossary page.

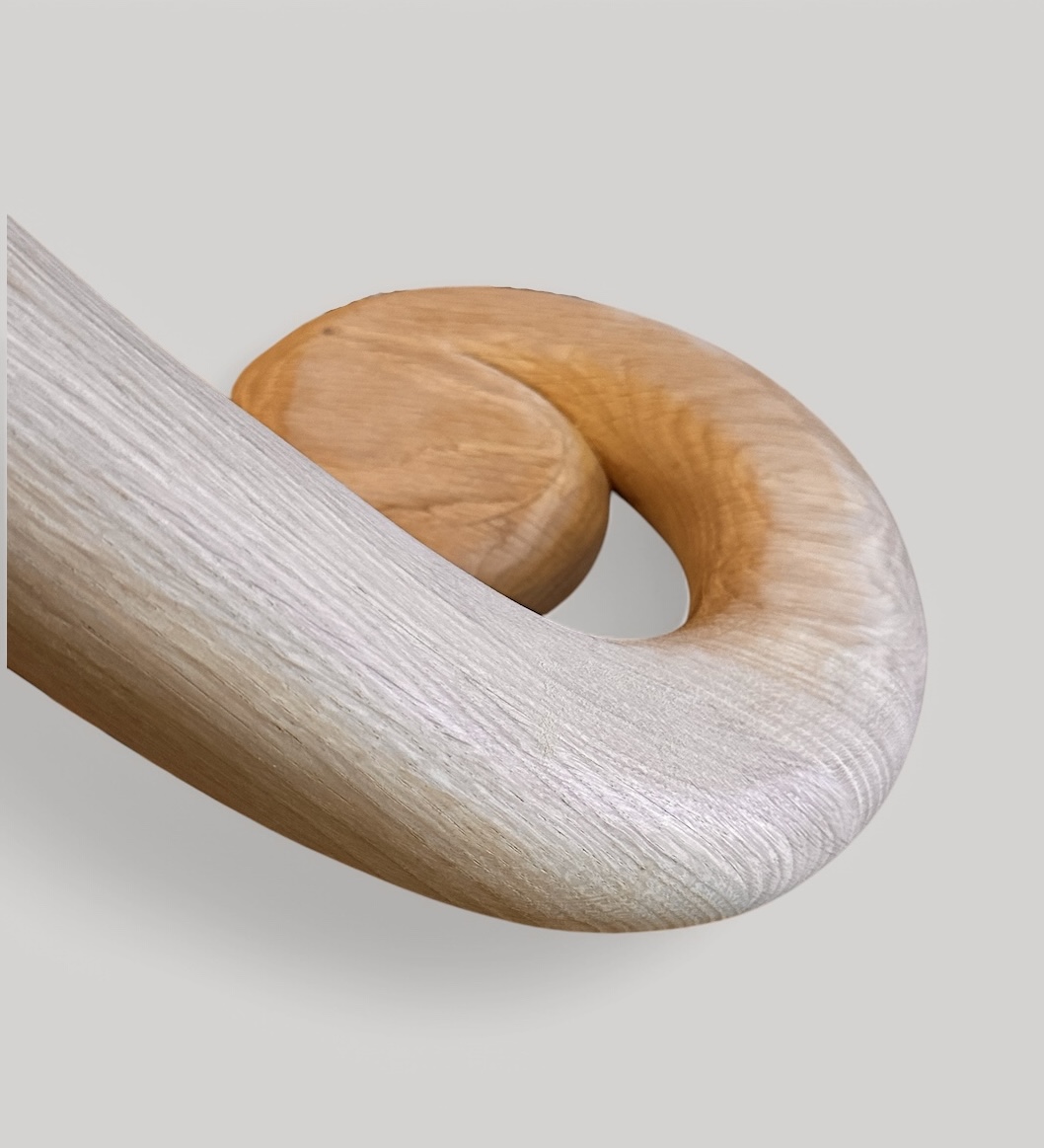

Volute With Up-Easing


  Oak Tulipwood Ash Sapele Walnut
  Oak Pine Ash Sapele Walnut
Standard profile £99.00 £90.00 £90.00 £90.00 £125.00
Victorian profile £89.00 £80.00 £80.00 £80.00 115.00

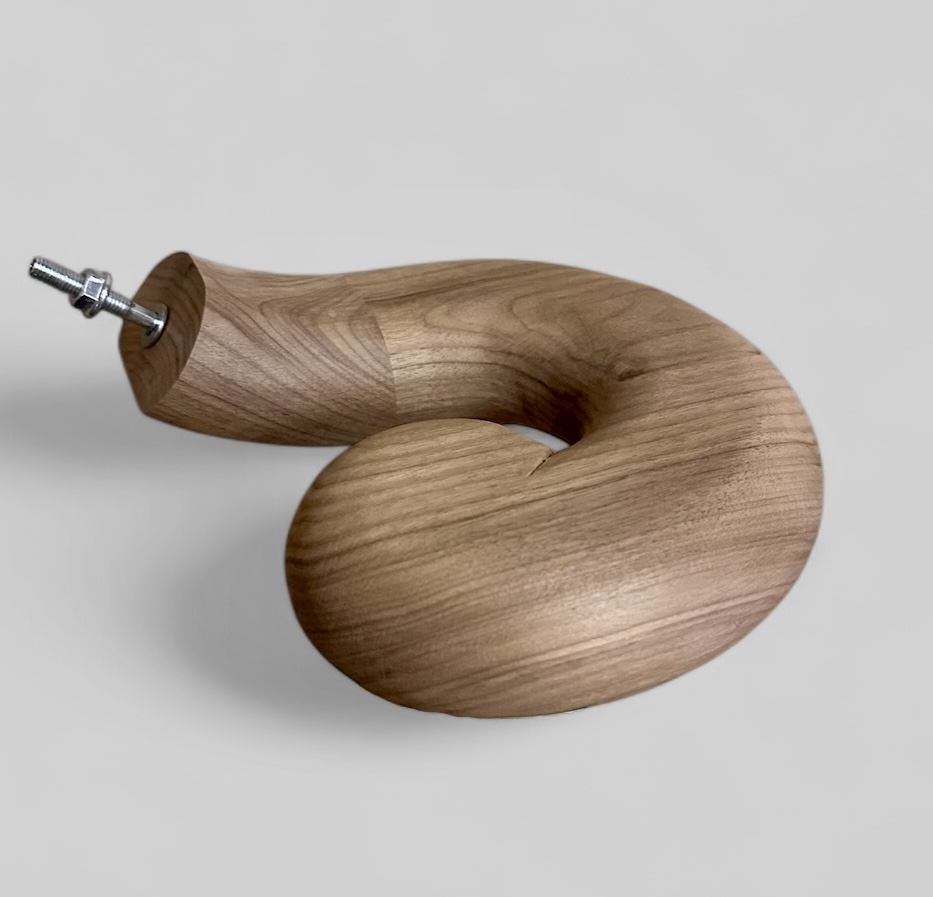

Small Volute With Up-Easing

Shown in walnut this small volute can be used in without a full bullnose step. The pin top newel can be fastened directly to the outside of the stair string.


small volute
  Oak Tulipwood Ash Sapele Walnut
  Oak Pine Ash Sapele Walnut
Standard profile N/A N/A N/A N/A N/A
Victorian profile £85.00 £75.00 £75.00 £75.00 £115.00

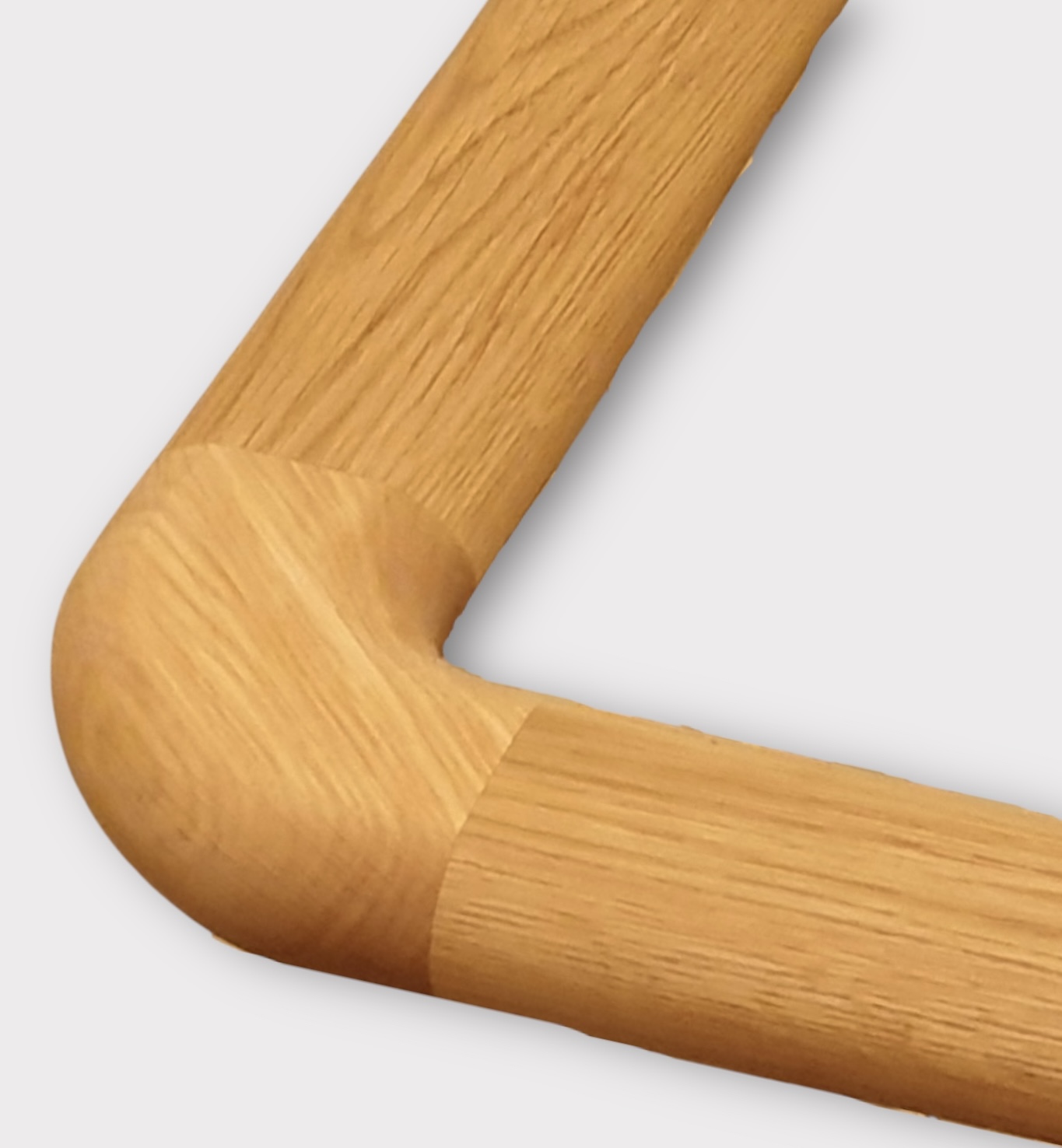

Horizontal Bend


  Oak Tulipwood Ash Sapele Walnut
  Oak Pine Ash Sapele Walnut
Standard profile £48.00 £42.00 £42.00 £42.00 £60.00
Victorian profile £45.00 £39.00 £39.00 £39.00 £55.00

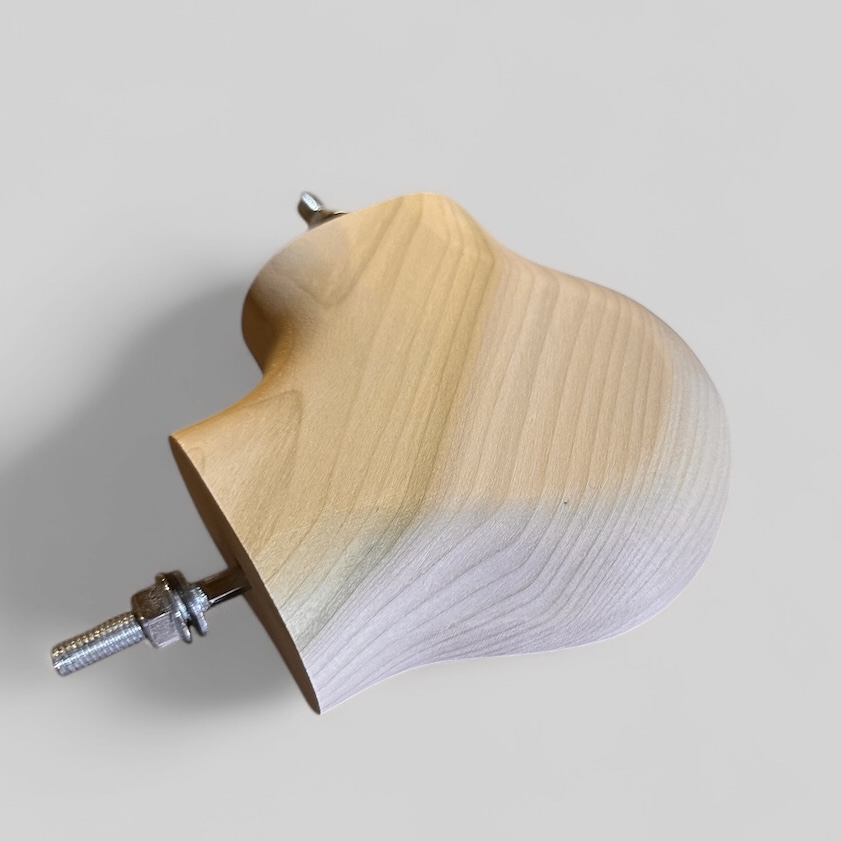

Horizontal Bend Cap


  Oak Tulipwood Ash Sapele Walnut
  Oak Pine Ash Sapele Walnut
Standard profile £48.00 £42.00 £42.00 £42.00 £60.00
Victorian profile £45.00 £39.00 £39.00 £39.00 £55.00

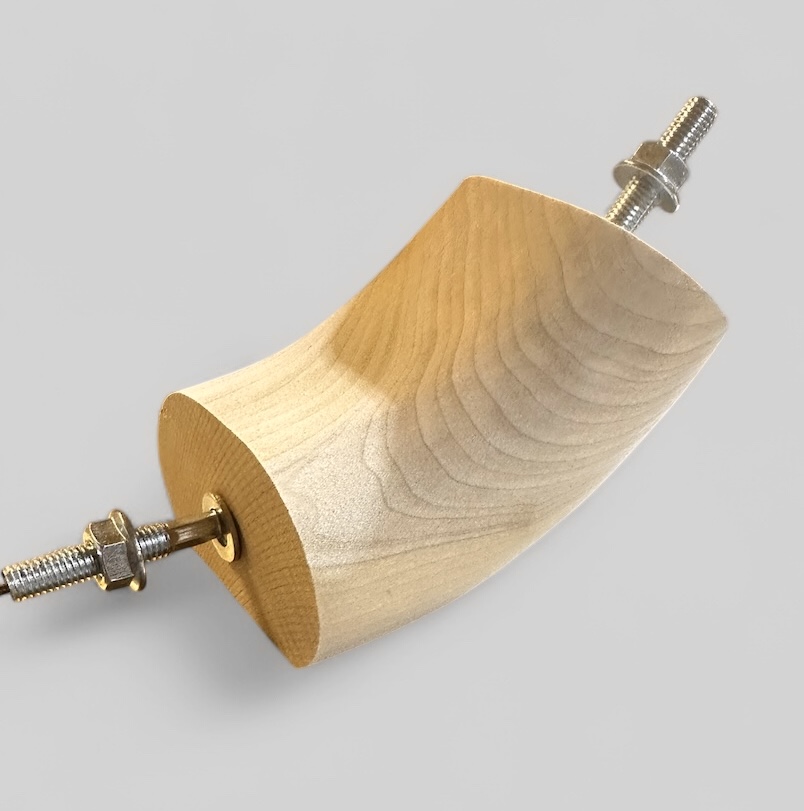

Up-Easing


  Oak Tulipwood Ash Sapele Walnut
  Oak Pine Ash Sapele Walnut
Standard profile £59.00 £55.00 £59.00 £55.00 £80.00
Victorian profile £49.00 £45.00 £49.00 £45.00 £65.00

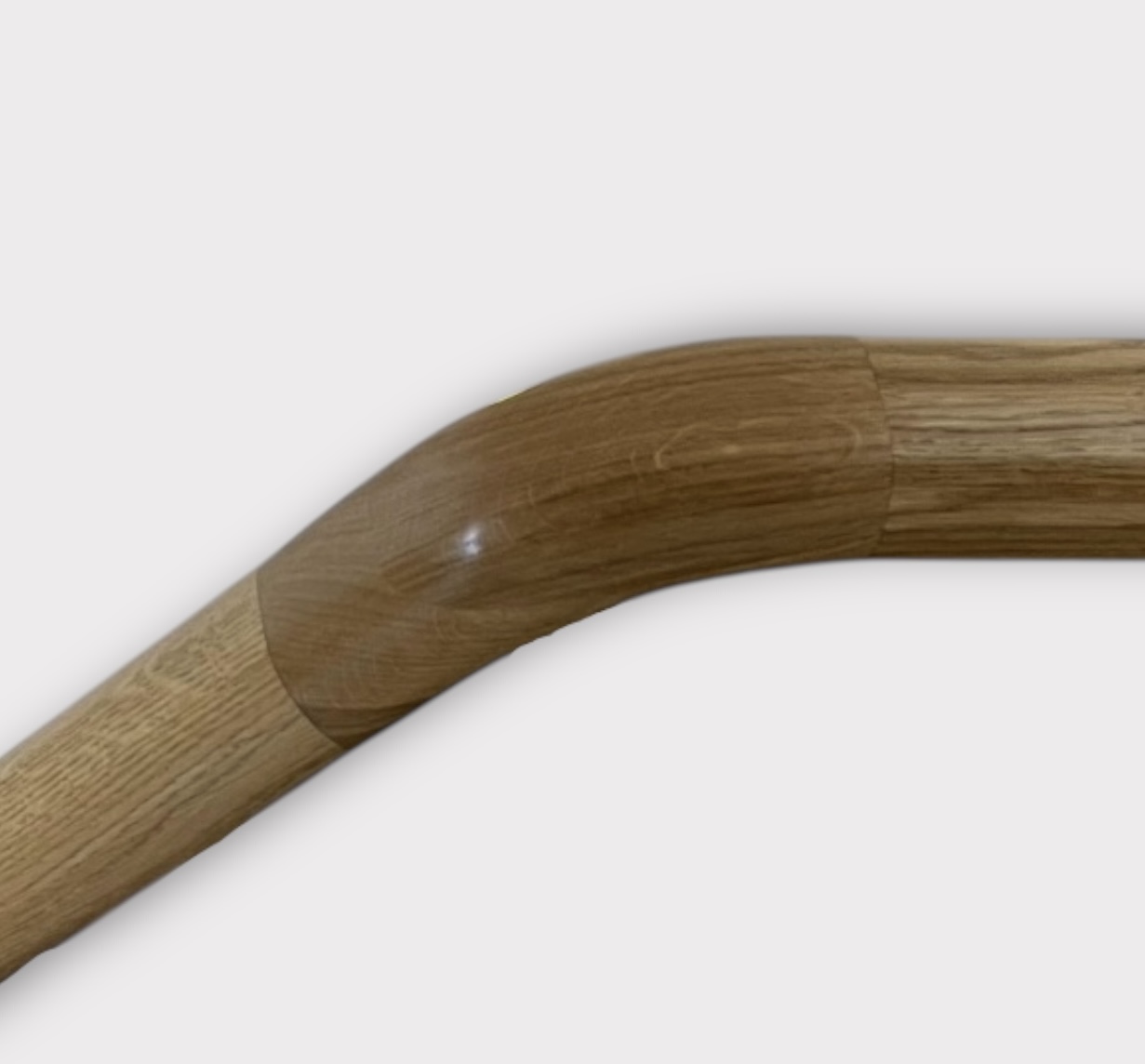

Over-Easing


  Oak Tulipwood Ash Sapele Walnut
  Oak Pine Ash Sapele Walnut
Standard profile
Standard profile £59.00 £55.00 £59.00 £55.00 £80.00
Victorian profile £49.00 £45.00 £49.00 £45.00 £65.00

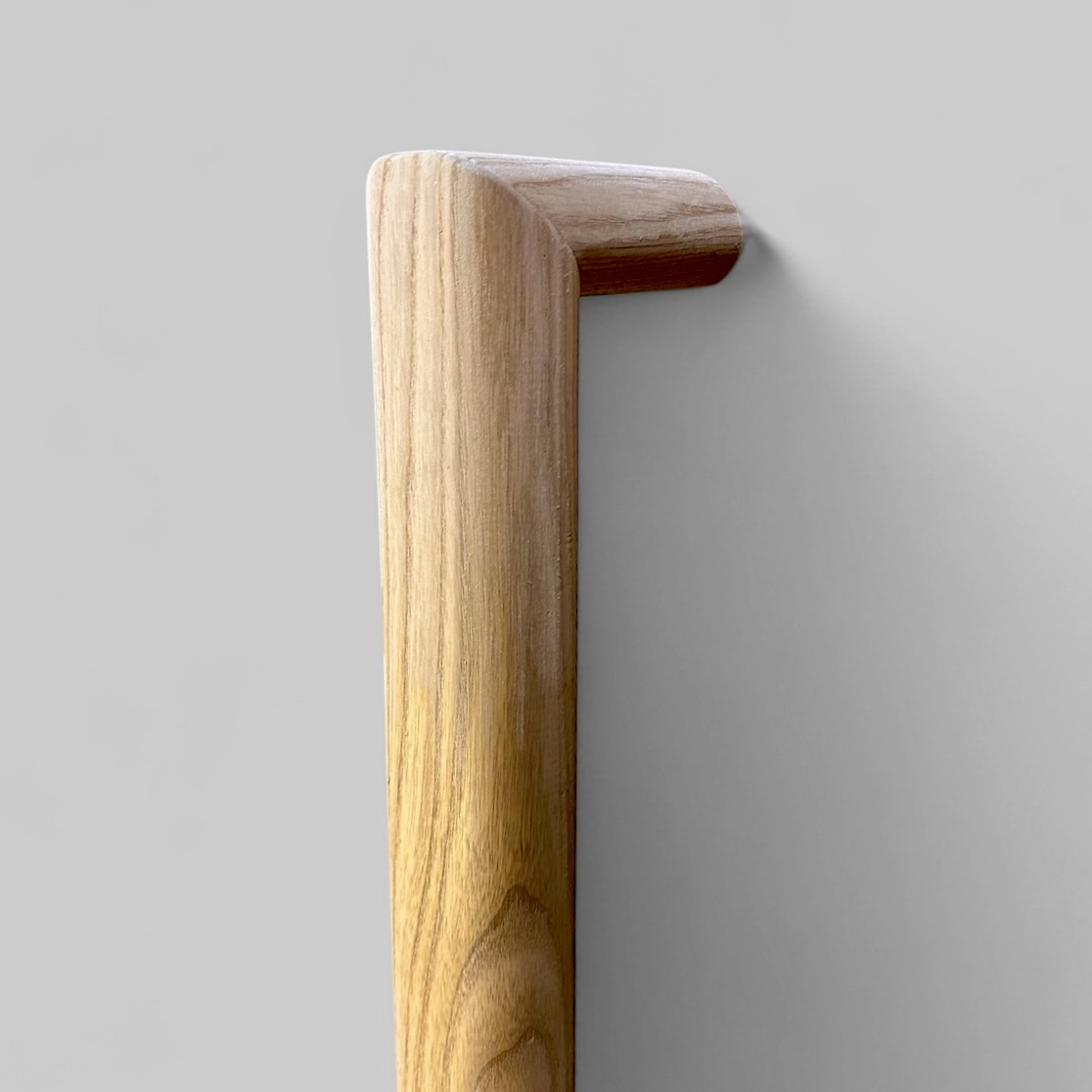

Vertical Bend


  Oak Tulipwood Ash Sapele Walnut
  Oak Pine Ash Sapele Walnut
Standard profile £45.00 £39.00 £39.00 £39.00 £65.00
Victorian profile £40.00 £35.00 £35.00 £35.00 £55.00

Opening Cap With Up-Easing


  Oak Tulipwood Ash Sapele Walnut
  Oak Pine Ash Sapele Walnut
Standard profile £79.00 £75.00 £75.00 £75.00 £98.00
Victorian profile £75.00 £69.00 £69.00 £69.00 £90.00

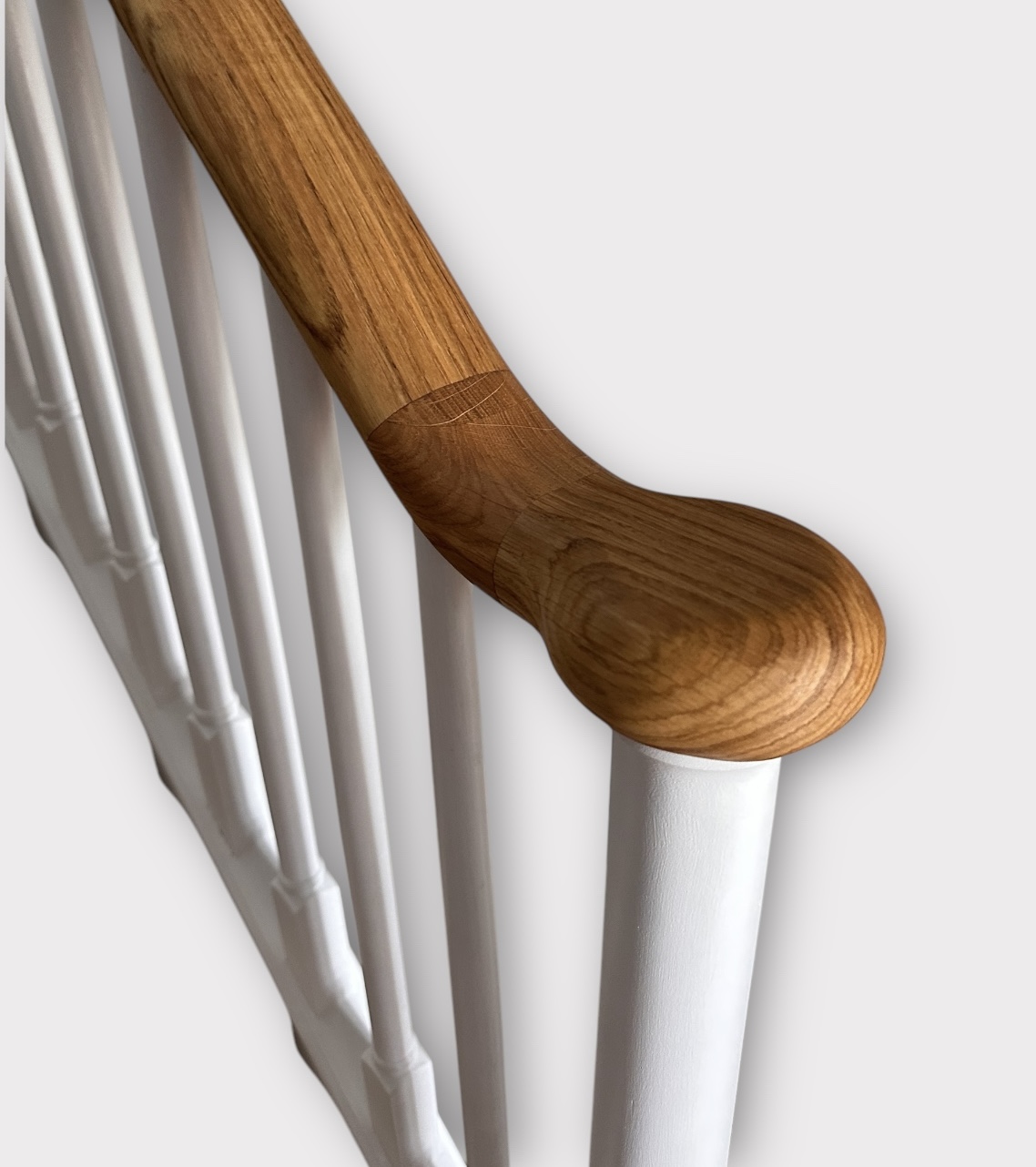

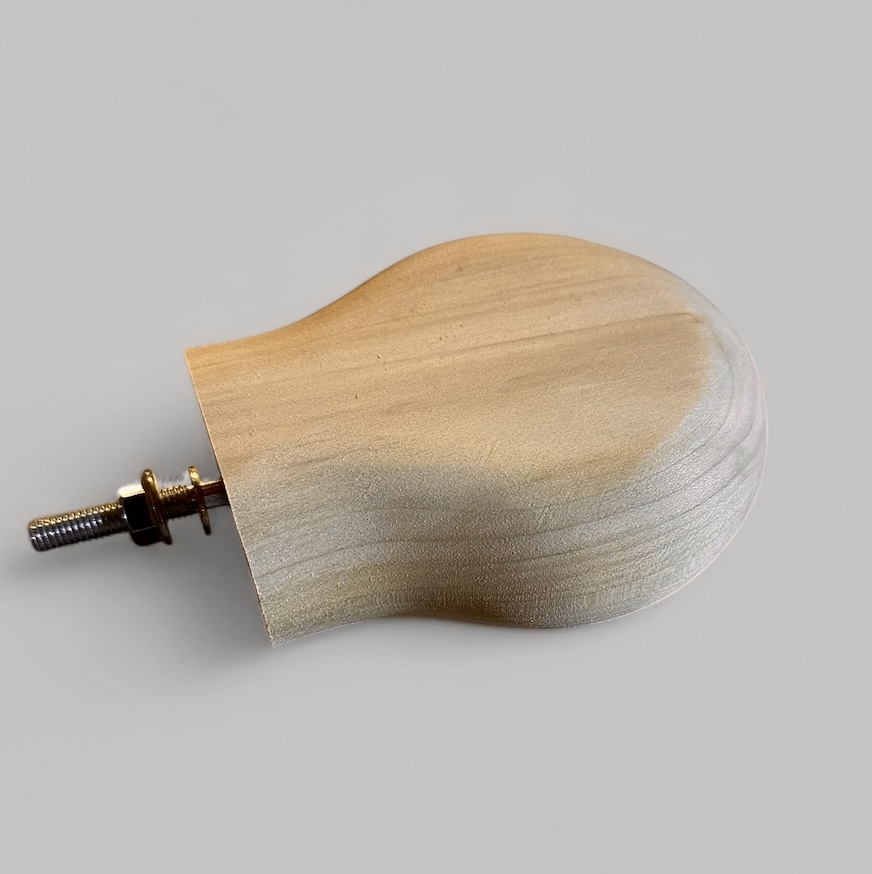

Opening Cap


  Oak Tulipwood Ash Sapele Walnut
  Oak Pine Ash Sapele Walnut
Standard profile £48.00 £45.00 £45.00 £45.00 £68.00
Victorian profile £42.00 £37.00 £37.00 £37.00 £60.00

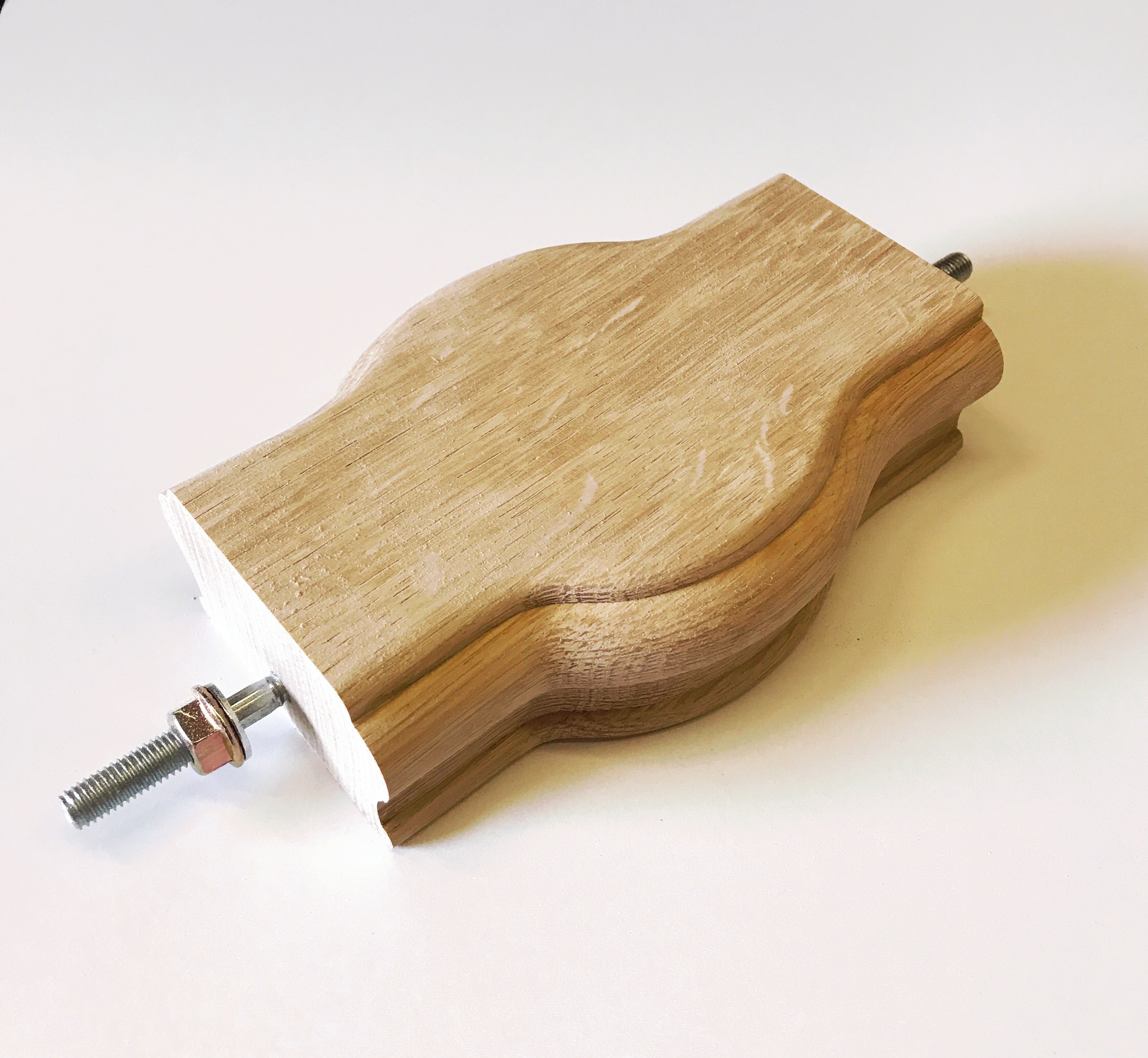

Running Cap


  Oak Tulipwood Ash Sapele Walnut
  Oak Pine Ash Sapele Walnut
Standard profile £48.00 £45.00 £45.00 £45.00 £70.00
Victorian profile £42.00 £37.00 £37.00 £37.00 £60.00

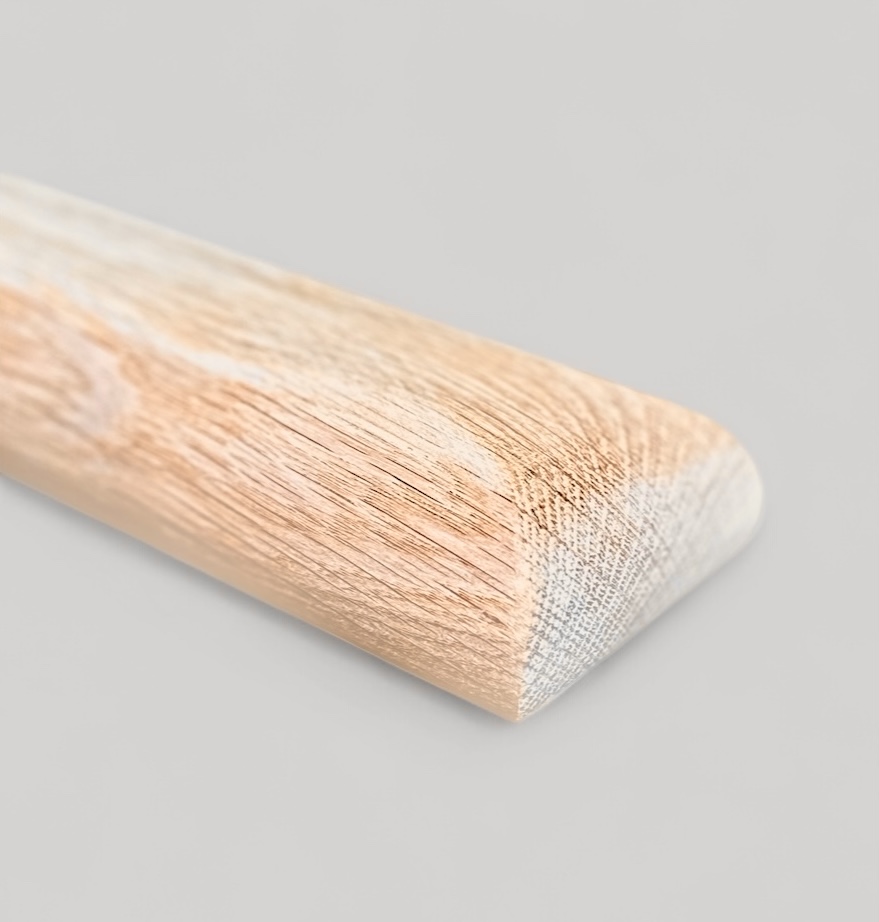

Dressed End


  Oak Tulipwood Ash Sapele Walnut
  Oak Pine Ash Sapele Walnut
Standard profile £35.00 £35.00 £35.00 £35.00 £39.00
Victorian profile £20.00 £20.00 £20.00 £20.00 £24.00

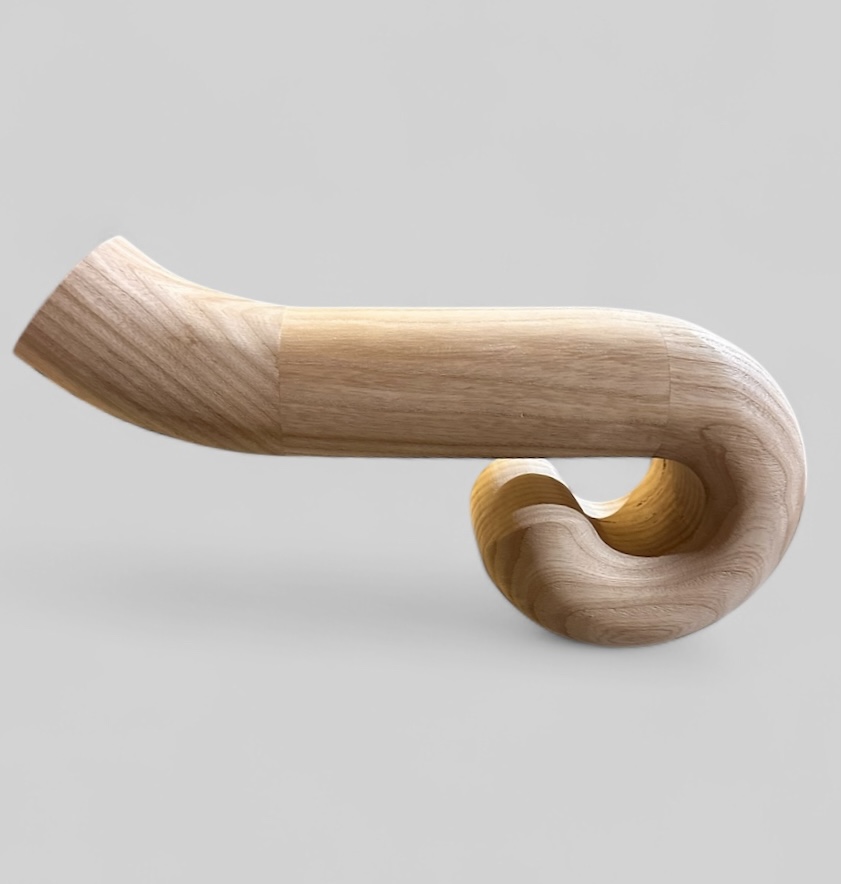

Snail End


  Oak Tulipwood Ash Sapele Walnut
  Oak Pine Ash Sapele Walnut
Standard profile £125.00 £95.00 £95.00 £95.00 £140.00
Victorian profile £95.00 £75.00 £75.00 £75.00 £115.00

VICTORIAN STYLE RAMPS AND WREATHS

With our Victorian style handrail we can produce traditional sweeping 'ramp and wreath' handrail sections to suit the most complex staircase layouts, below are a few examples of such work.

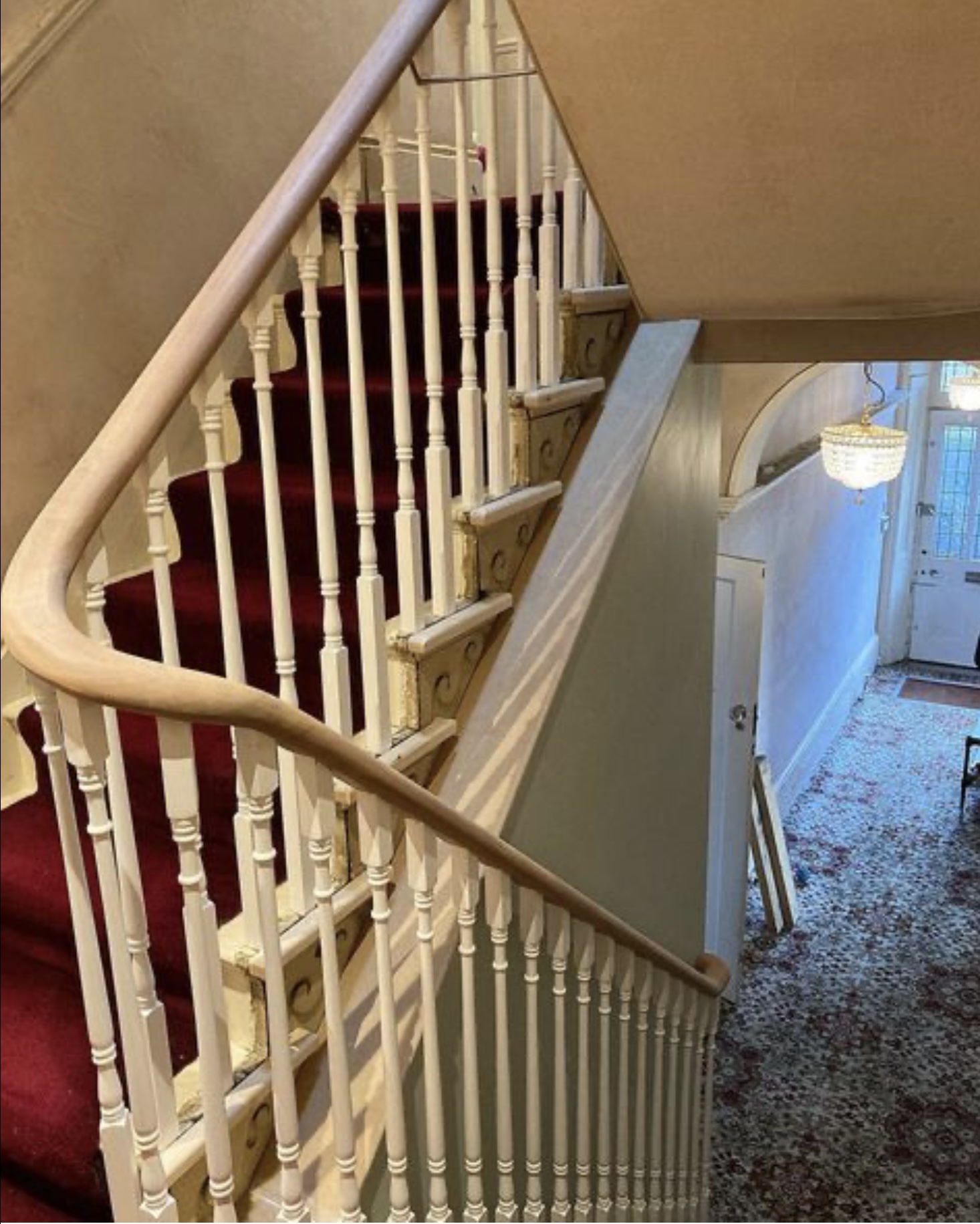

Sapele wreathed handrail with painted Tulipwood spindles. This wreath would work out at around £650.00 plus VAT.

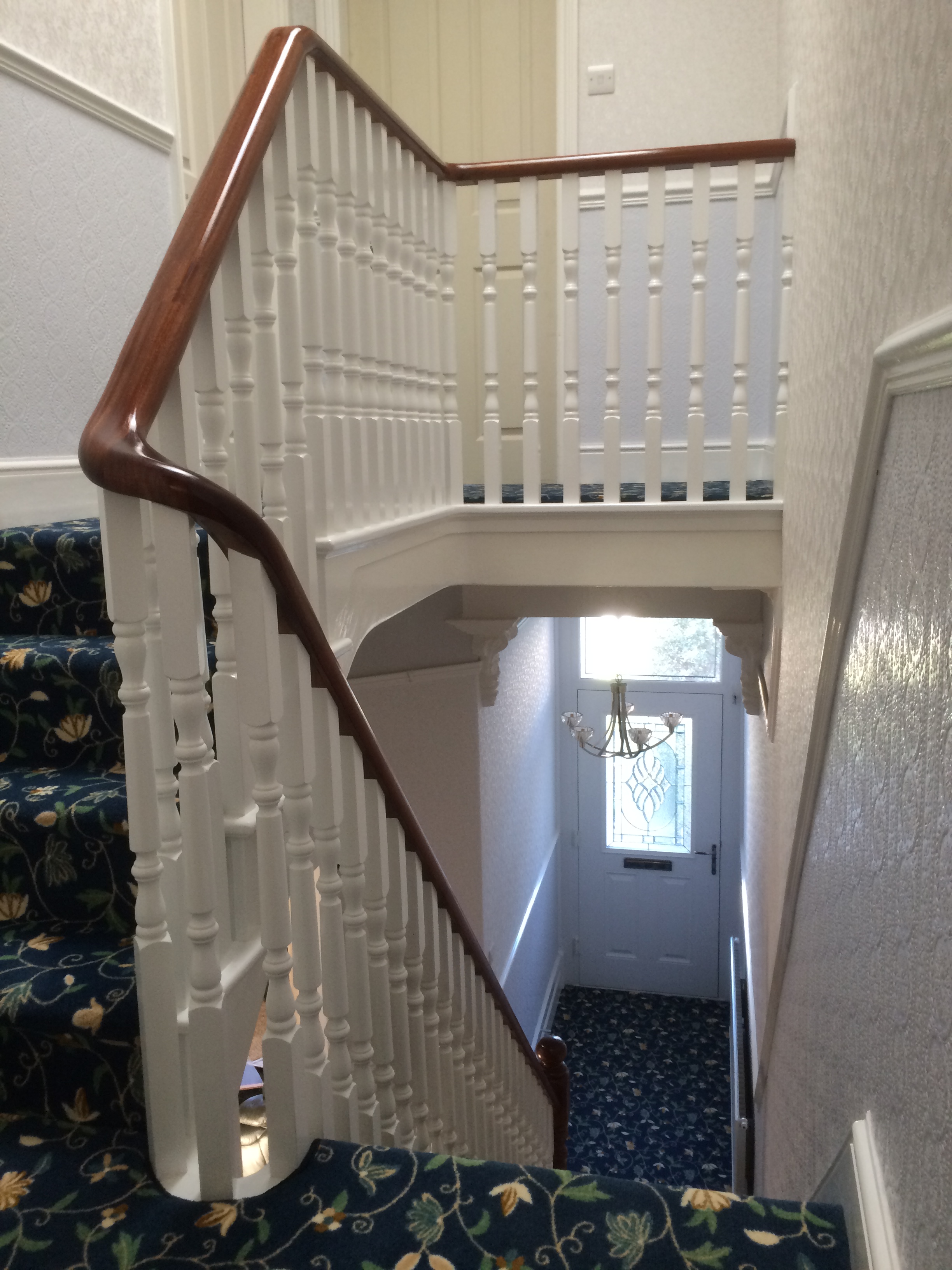

A Sapele wreath with Tulipwood spindles, shown here as a work in progress restoration job.

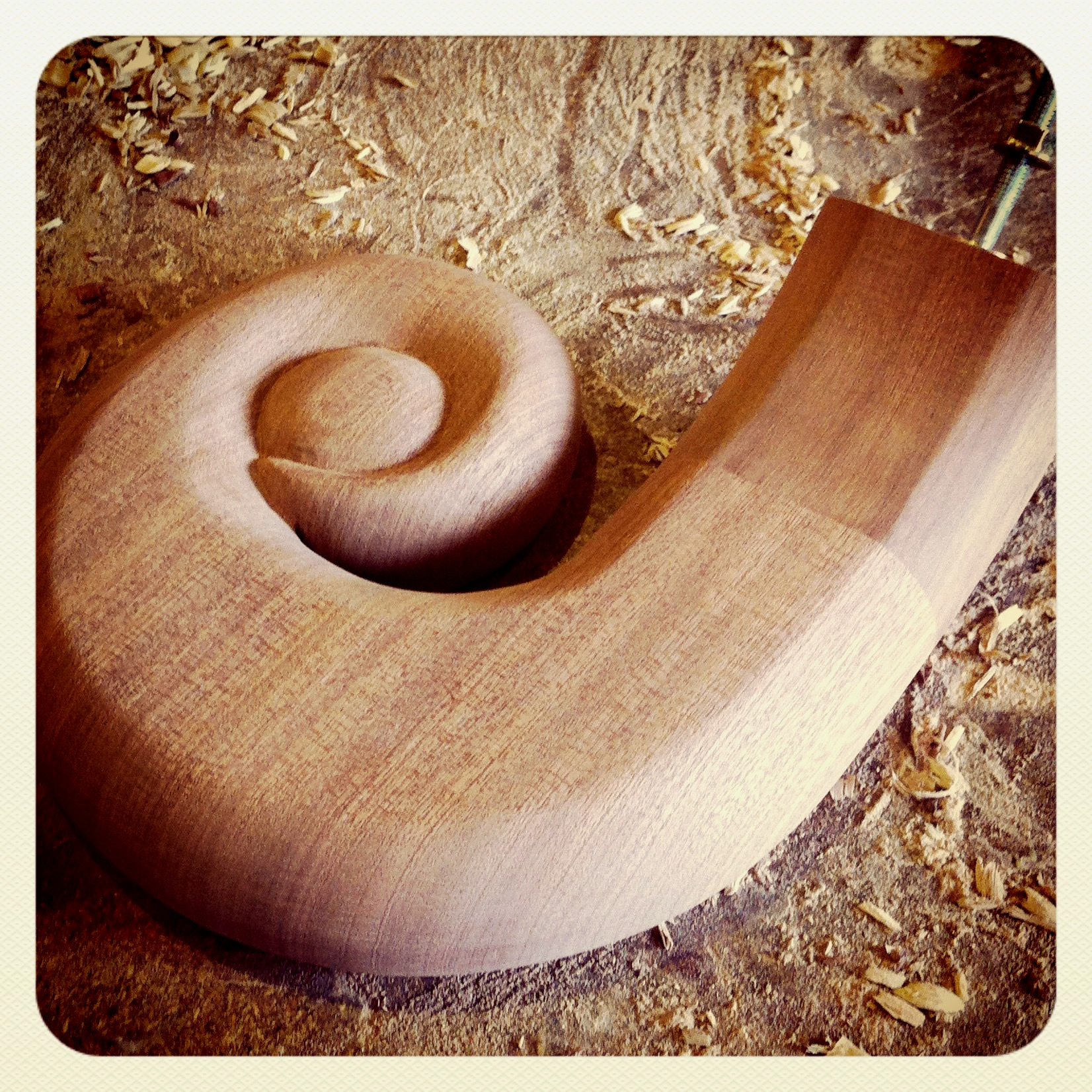

walnut volute

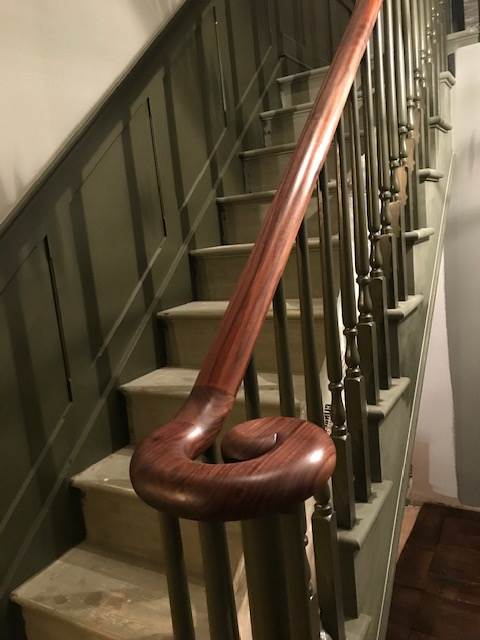

A walnut volute in Victorian profile.
oak volute

A special, Oak volute including some centre detail.
Barley twist spindle

A smaller Walnut volute designed to fit a tighter location.
